EPS Shape Cutting Machine

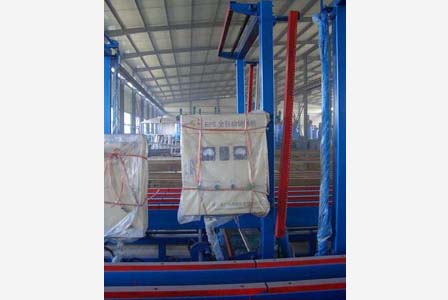

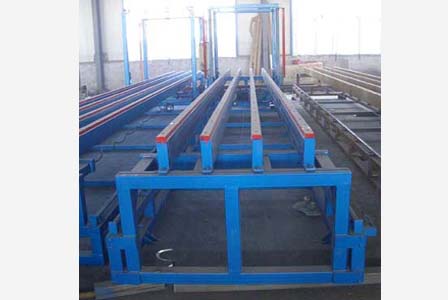

 EPS 2D CNC Shape Cutting Machine  EPS CNC Shape Cutting Machine  EPS Shape Cutting Machine EPS 2D CNC Shape Cutting Machine EPS CNC Shape Cutting Machine EPS Shape Cutting Machine
|
Description of EPS CNC Cutting Machine:
1.The machine makes use of controlling the X-axis and the Y-axis to combine them into a graph. At the same time, the resistance wire is used to cut all kinds of EPS products. Its operation route is to make use of the graphics inputted into the computer, and automatically sends impulse signals to control the X and Y axes;
2.Two methods: to directly use AutoCAD to draw or to scan the graphics and then input them into the computer;
3.The Single-Wire CNC Shape Cutting Machine is applicable to cutting products with big volumes or in small numbers;
4.The Multiple-Wire CNC Shape Cutting Machine is applicable to cutting products with small volumes or in large quantities. The Resistance Wire Cutting System can use 20 resistance wires at the same time, after inputting the graphics into the computer all the resistance wires can run in parallel, and can cut 20 complex 2D shapes.
Technical Parameters of EPS Shape Cutting Machines:
No. |
Items |
Unit |
ABE-CNC2-2000x1240 |
ABE-CNC2-3000x3000 |
ABE-CNC2-4000x4000 |
1 |
Max. Products Size |
mm |
2000x1240x1240 |
3000x3000x1240 |
4000x4000X1240 |
2 |
Hot Cutting Wire Length |
mm |
2000 |
3000 |
4000 |
3 |
Min. Cutting Thickness |
mm |
0-1240 |
0-1240 |
0-1240 |
4 |
Cutting Speed |
m/min |
0-3.5
Frequency-Conversion Timming |
0-3.5
Frequency-Conversion Timming |
0-3.5
Frequency-Conversion Timming |
5 |
Number of Operating
Hot Wire Simultaneously |
Piece |
1-20 |
1-20 |
1-20 |
6 |
Hot Wire Specification |
mm |
0.4-0.8 |
0.4-0.8 |
0.4-0.8 |
7 |
Power Supply |
kw |
2.25 |
2.25 |
3.0 |
8 |
Transformer Capacity |
kw |
8 |
8 |
8 |
9 |
Control Mode |
|
automatic |
automatic |
automatic |
10 |
Control System |
|
AutoCAD |
AutoCAD |
AutoCAD |
11 |
Cutting Mode |
|
Two Dimension |
Two Dimension |
Two Dimension |
12 |
Max. Contour Size |
mm |
2500x2000x2500 |
3500x3500x2500 |
4500x4500x2500 |
13 |
Machine Net Weight |
kg |
1500 |
2000 |
2500 |
Products Typical Applications of EPS Shape Cutting Machine:
|
|
|
EPS Blocks |
EPS Boards |
EPS Boxes |
